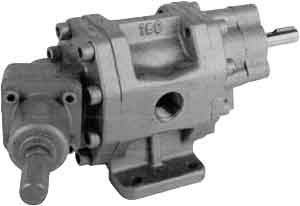

OBERDORFER Geariron Heavy Duty Rotary Gear
Pumps are
designed for use in general industrial and processing
applications. The engineered product utilizes helical gears and
oversized bearings for long, quiet, trouble-free service. A variety
of bearing materials and mechanical seals make this pump
suitable for a wide range of applications. Geariron pumps can be
supplied in either a pedestal mount version or close-coupled to
AC or DC drives. Users can adjust speed either manually or by
remote electronic signals.
• Helical
Gears — Ouiet running with long service life
• Heavy Duty Bearings — Long
life, pressures up to 500 PSIG
• Optional Integral Relief Valve — Protects
pump from damage
due to over pressurization
• Custom Engineered Design — Each
pump built to match
specific application requirements
• Self Priming — Lifts fluid up to 20 feet
|
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
03GB1111
|
3
|
250
|
225
|
50,000
|
N/A
|
1/2" FPT
|
1/2" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
Call For Motor Information
And Mounting Components
|
12
|
5x6x11
|
|
05GB1111
|
5
|
250
|
225
|
50,000
|
N/A
|
3/4" FPT
|
3/4" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
16
|
5x6x12
|
|
10GB1111
|
10
|
250
|
225
|
50,000
|
N/A
|
1" FPT
|
1" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
22
|
6x7x14
|
|
18GB1111
|
18
|
250
|
225
|
50,000
|
N/A
|
11/4" FPT
|
11/4" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
34
|
6x7x14
|
|
25GB1111
|
25
|
250
|
225
|
50,000
|
N/A
|
11/4" FPT
|
11/4" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
42
|
7x8x16
|
|
35GB1111
|
35
|
250
|
400
|
50,000
|
N/A
|
11/2" FPT
|
11/2" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
51
|
7x8x17
|
|
03HC1211
|
3
|
300
|
400
|
50,000
|
N/A
|
1/2" FPT
|
1/2" FPT
|
CI,ST,6S,CB,CE,VT
|
12
|
5x6x11
|
|
05HC1211
|
5
|
300
|
400
|
50,000
|
N/A
|
3/4" FPT
|
3/4" FPT
|
CI,ST,6S,CB,CE,VT
|
16
|
5x6x12
|
|
10HC1211
|
10
|
300
|
400
|
50,000
|
N/A
|
1" FPT
|
1" FPT
|
CI,ST,6S,CB,CE,VT
|
22
|
6x7x13
|
|
18HC1211
|
18
|
300
|
400
|
50,000
|
N/A
|
11/4" FPT
|
11/4" FPT
|
CI,ST,6S,CB,CE,VT
|
34
|
6x7x14
|
|
25HC1211
|
25
|
300
|
400
|
50,000
|
N/A
|
11/4" FPT
|
11/4" FPT
|
CI,ST,6S,CB,CE,VT
|
42
|
7x8x16
|
|
35HC1211
|
35
|
300
|
400
|
50,000
|
N/A
|
11/2" FPT
|
11/2" FPT
|
CI,ST,6S,CB,CE,VT
|
51
|
7x8x17
|
|
03GB61112
|
2
|
250
|
225
|
10,000
|
N/A
|
1/2" FPT
|
1/2' FPT
|
CI,BR,ST,6S,CE,CB,BN
|
1
|
1150
|
230/460
|
3
|
60
|
TEFC
|
69
|
6x7x24
|
|
05GB61112
|
4
|
250
|
225
|
10,000
|
N/A
|
3/4" FPT
|
3/4"FPT
|
CI,BR,ST,6S,CE,CB,BN
|
11/2
|
1150
|
230/460
|
3
|
60
|
TEFC
|
69
|
6x7x24
|
|
10GB61117
|
10
|
250
|
225
|
1,000
|
N/A
|
1' FPT
|
1" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
3
|
1750
|
230/460
|
3
|
60
|
TEFC
|
101
|
8x9x29
|
|
18GB61118
|
18
|
250
|
225
|
1,000
|
N/A
|
11/4" FPT
|
11/4" FPT
|
CI,BR,ST,6S,CE,CB,BN
|
5
|
1750
|
230/460
|
3
|
60
|
TEFC
|
125
|
8x9x30
|
|
Other seal configurations
available for temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application
Engineer for assistance in selecting pumps for fluids with
specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
|
