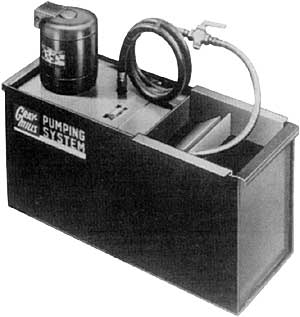

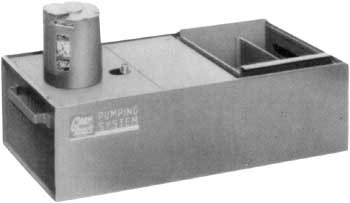

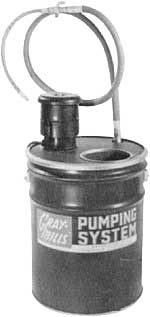

GRAYMILLS Pump/Tank coolant systems are designed for
general industrial applications. They offer a wide variety of
products to fit your machine tool requirements. Units can be
used on lathes, multiple spindle bar machines, boring machines,
abrasive finishing and cut-off machines. Systems utilize the
standard GRAYMILLS Seal-less Immersible Pumps. Both six
and eleven gallon units include chip baskets and discharge
hoses with flexible nozzle and valve. Larger units include
chip collector trays.
• Tank Units from 6 to 110 Gallons
— Flexible for many applications
• Heavy Duty Construction – Long life
• Removable Chip Basket – Easy
cleaning and maintenance
• Baffled Tanks – Sludge and other
solids drop out as fluid circulates
Performance curves can be found on page 61 in the Vertical
Centrifugal Pump Section.
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Tank
Size
Gals.
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
3GV6-9
|
50
|
42
|
225
|
1500
|
1.1
|
2" FPT
|
1 1/4" FPT
|
9
|
CB,CE,BN,CI,BR,3S
|
1/3
|
3450
|
115/230
|
1
|
60
|
ODP
|
160
|
17 x 21 x 25
|
|
33GV6-9
|
50
|
42
|
225
|
1500
|
1.1
|
2" FPT
|
1 1/4" FPT
|
9
|
CB,CE,BN,CI,BR,3S
|
1/3
|
3450
|
230/460
|
3
|
60
|
ODP
|
160
|
17 x 21 x 25
|
|
5GV6-9
|
56
|
53
|
225
|
1500
|
1.1
|
2" FPT
|
1 1/4" FPT
|
9
|
CB,CE,BN,CI,BR,3S
|
1/2
|
3450
|
115/230
|
1
|
60
|
ODP
|
164
|
17 x 21 x 25
|
|
35GV6-9
|
56
|
53
|
225
|
1500
|
1.1
|
2" FPT
|
1 1/4" FPT
|
9
|
CB,CE,BN,CI,BR,3S
|
1/2
|
3450
|
230/460
|
3
|
60
|
ODP
|
164
|
17 x 21 x 25
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
