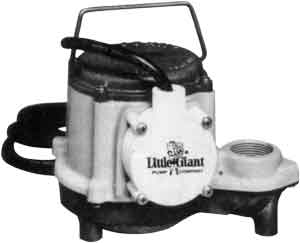

LITTLE GIANT Submersible Sump, Effluent
and Sewage Pumps are designed for use in residential, commercial, and
general industrial applications. They are ideal for dewatering, effluent
waste, water and sewage handling. The standard Cast Iron housings and
volutes are coated with a protective epoxy for corrosion and rust resistance.
The automatic effluent pumps utilize a mercury float switch and will
handle solids up to 3/4”
diameter. The automatic sewage pumps also use a mercury float switch
and will pass solids up to 2” diameters.
• Rugged Cast Iron or Bronze Construction - Provides
extended pump life and low maintenance
• Thermally Protected Motors – Protects pump
from damage due to blockage
• Non-Clog Impeller – Prevents pumps blockage
• UL Listed and CSA Approved –
assures high standard
of Quality
• 6-CIA Through 12-CBA – Sump
Pumps
• 8E-CIA Through 16EH-CIA – Effluent Pumps
• 9S-CIA-RFS Through 16S-CIM –
Sewage Pumps
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Tank
Size
Gals.
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
6-CIA
|
46
|
18
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
CI, PP, 3S, CB, BN, CE
|
1 1/4
|
1500
|
115
|
1
|
60
|
SUB
|
19
|
6 x 10 x 9
|
|
8-CIA
|
54
|
22
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
CI, PP, 3S, CB, BN, CE
|
4/10
|
1500
|
115
|
1
|
60
|
SUB
|
19
|
6 x 10 x 9
|
|
10-CIA
|
70
|
23
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
CI, PI, 3S, CB, BN, CE
|
1/2
|
1500
|
115
|
1
|
60
|
SUB
|
38
|
11 x 10 x 10
|
|
12-CBA
|
83
|
26
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
BR, 3S, BN, CB, CE
|
1/2
|
1500
|
115
|
1
|
60
|
SUB
|
39
|
11 x 10 x 10
|
|
8E-CIA-RFS
|
52
|
21
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
CI, NY, 3S, BN, CB, CE
|
1/3
|
1500
|
115
|
1
|
60
|
SUB
|
29
|
9 x 10 x 7
|
|
9E-CIA-RFS
|
57
|
23
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
CI, NY, 3S, BN, CB, CE
|
4/10
|
1500
|
115
|
1
|
60
|
SUB
|
33
|
9 x 10 x 7
|
|
10E-CIA-RFS
|
80
|
26
|
125
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
CI, NY, 3S, BN, CB, CE
|
1/2
|
1500
|
115
|
1
|
60
|
SUB
|
44
|
11 x 10 x 9
|
|
16EH-CIM +
|
70
|
81
|
125
|
1500
|
1.1
|
—
|
2" FPT
|
CI, 3S, BN, CB, CE
|
1
|
1500
|
230
|
1
|
60
|
SUB
|
82
|
17 x 14 x 10
|
|
9S-CIA-RFS
|
80
|
19
|
125
|
1500
|
1.1
|
—
|
2" FPT
|
CI, NY, 3S, BN, CB, CE
|
4/10
|
1500
|
115
|
1
|
60
|
SUB
|
36
|
11 x 11 x 7
|
|
10S-CIA-RFS
|
110
|
22
|
125
|
1500
|
1.1
|
—
|
2" FPT
|
CI, NY, 3S, BN, CB, CE
|
1/2
|
1500
|
115
|
1
|
60
|
SUB
|
48
|
13 x 11 x 9
|
|
16S-CIM +
|
160
|
35
|
125
|
1500
|
1.1
|
—
|
3" FPT
|
CI, 3S, BN, CB, CE
|
1
|
1500
|
230
|
1
|
60
|
SUB
|
88
|
18 x 14 x 10
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
