• Heavy Duty Cast Iron
Construction - Provides long service life
• Self-lubricating Oiltite Bearing
– Reduces maintenance costs
• Optional 316 Stainless Steel Construction
- Allows handling of
corrosive chemicals
|

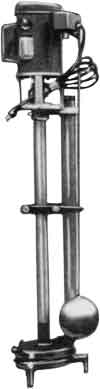

These heavy duty vertical sump pumps are designed
for use in general industrial and chemical applications. Standard materials
of construction are Bronze Fitted Cast Iron. Optional materials available
are all Iron and 316 Stainless Steel. Automatic operation is controlled
by means of a Stainless steel float switch assembly. Pumps
are available with immersion depth up to 20 feet. A 20 inch diameter
sump cover and discharge pipe assembly are included with each pump.
|
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Tank
Size
Gals.
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
300
|
48
|
27
|
200
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/3
|
1750
|
115/230
|
1
|
60
|
TEFC
|
102
|
20 x 20 x 49
|
|
300
|
48
|
27
|
200
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/3
|
1750
|
230/460
|
3
|
60
|
TEFC
|
102
|
20 x 20 x 49
|
|
300
|
48
|
27
|
200
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/3
|
1750
|
115/230
|
1
|
60
|
XP
|
117
|
20 x 20 x 49
|
|
300
|
48
|
27
|
200
|
1500
|
1.1
|
—
|
1 1/2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/3
|
1750
|
230/460
|
3
|
60
|
XP
|
117
|
20 x 20 x 49
|
|
500
|
68
|
32
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/2
|
1750
|
115/230
|
1
|
60
|
TEFC
|
101
|
20 x 20 x 49
|
|
500
|
68
|
32
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/2
|
1750
|
230/460
|
3
|
60
|
TEFC
|
101
|
20 x 20 x 49
|
|
500
|
68
|
32
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/2
|
1750
|
115/230
|
1
|
60
|
XP
|
123
|
20 x 20 x 49
|
|
500
|
68
|
32
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1/2
|
1750
|
230/460
|
3
|
60
|
XP
|
123
|
20 x 20 x 49
|
|
500
|
95
|
36
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
3/4
|
1750
|
115/230
|
1
|
60
|
TEFC
|
102
|
20 x 20 x 49
|
|
500
|
95
|
36
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
3/4
|
1750
|
230/460
|
3
|
60
|
TEFC
|
102
|
20 x 20 x 49
|
|
500
|
95
|
36
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
3/4
|
1750
|
115/230
|
1
|
60
|
XP
|
124
|
20 x 20 x 49
|
|
500
|
95
|
36
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
3/4
|
1750
|
230/460
|
3
|
60
|
XP
|
124
|
20 x 20 x 49
|
|
500
|
90
|
45
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1
|
1750
|
115/230
|
1
|
60
|
TEFC
|
108
|
20 x 20 x 49
|
|
500
|
90
|
45
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1
|
1750
|
230/460
|
3
|
60
|
TEFC
|
108
|
20 x 20 x 49
|
|
500
|
90
|
45
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1
|
1750
|
115/230
|
1
|
60
|
XP
|
128
|
20 x 20 x 49
|
|
500
|
90
|
45
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1
|
1750
|
230/460
|
3
|
60
|
XP
|
128
|
20 x 20 x 49
|
|
500
|
120
|
48
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1 1/2
|
1750
|
115/230
|
1
|
60
|
TEFC
|
122
|
20 x 20 x 49
|
|
500
|
120
|
48
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1 1/2
|
1750
|
230/460
|
3
|
60
|
TEFC
|
122
|
20 x 20 x 49
|
|
500
|
120
|
48
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1 1/2
|
1750
|
115/230
|
1
|
60
|
XP
|
144
|
20 x 20 x 49
|
|
500
|
120
|
48
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
1 1/2
|
1750
|
230/460
|
3
|
60
|
XP
|
144
|
20 x 20 x 49
|
|
500
|
155
|
52
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
2
|
1750
|
115/230
|
1
|
60
|
TEFC
|
145
|
20 x 20 x 49
|
|
500
|
155
|
52
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
2
|
1750
|
230/460
|
3
|
60
|
TEFC
|
145
|
20 x 20 x 49
|
|
500
|
155
|
52
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
24
|
CB, CE, BN, CI, BR, 3S
|
2
|
1750
|
115/230
|
1
|
60
|
XP
|
160
|
20 x 20 x 49
|
|
500
|
155
|
52
|
200
|
1500
|
1.1
|
—
|
2" FPT
|
224
|
CB, CE, BN, CI, BR, 3S
|
2
|
1750
|
230/460
|
3
|
60
|
XP
|
160
|
20 x 20 x 49
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
