PRICE Centrifugal Pumps are designed for general
industrial and OEM applications requiring a low cost and
compact design. Available in both close coupled and
frame mounted designs, the pumps are constructed of All
Iron, All Bronze, or Bronze Fitted Iron. Close coupled
units (all except P Series) can be supplied with single or
three phase motors in a variety of enclosures including
Open Drip Proof, Totally Enclosed, and Explosion Proof.
Contact a Water Cooling Engineer for information
and pricing on optional materials of construction and
other motors not listed in specification table shown below.
• Semi-Open Impeller Design (LT, P, E, & RC
Series)
—Minimizes potential clogging
• Enclosed Impeller Design (JB Series) —
Provides
optimum performance for medium to high heads• Back Pull-Out Design
— Allows servicing without disturbing piping
• Bronze Shaft Sleeve (JB Series) — Protects
shaft
from wear and corrosion• Standard Nema C and JM Frame Motors (CD,
JB,
& RC Series) — Allows use of a wide range of drives
• Standard Mechanical Seals — Offers easy
service
and wide variety of seal configurations and materials
|
|
|
 |
|
LT25-12
|
LT25-12
|
PRYCO CAST IRON CENTRIFUGAL PUMPS
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
oF
|
Max.
Visc
SSU
|
Max.
Spec
Grav. |
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|

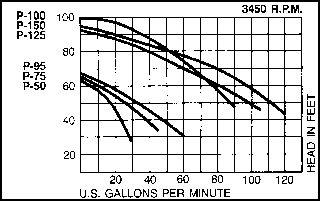

P-50 |
29
|
64
|
225
|
1500
|
1.1
|
3/4" FPT
|
1/2" FPT
|
CI, 3S, CB, CE, BN
|
Call For Motor Information and
Mounting Components
|
20
|
7x6x5
|
P-75 |
45
|
66
|
225
|
1500
|
1.1
|
1" FPT
|
3/4" FPT
|
CI, 3S, CB, CE, BN
|
20
|
7x7x5
|
P-95 |
60
|
68
|
225
|
1500
|
1.1
|
11/4" FPT
|
1" FPT
|
CI, 3S, CB, CE, BN
|
20
|
7x7x5
|
P-100 |
90
|
100
|
225
|
1500
|
1.1
|
11/4" FPT
|
1" FPT
|
CI, 3S, CB, CE, BN
|
20
|
8x8x6
|
|
P-125 |
105
|
92
|
225
|
1500
|
1.1
|
11/2" FPT
|
11/4" FPT
|
CI, 3S, CB, CE, BN
|
20
|
8x8x6
|
|
P-150 |
120
|
95
|
225
|
1500
|
1.1
|
2" FPT
|
11/2" FPT
|
CI, 3S, CB, CE, BN
|
20
|
8x8x6
|
|
LT25-33-F20 |
12
|
48
|
225
|
1500
|
1.1
|
1/2" FPT
|
1/4" FPT
|
BR, 3S, VT, CB, CE
|
1/3
|
3600
|
115/230
|
1
|
60
|
TEFC
|
27
|
13x7x6
|
|
LT25-30-F58 |
12
|
48
|
225
|
1500
|
1.1
|
1/2" FPT
|
1/4" FPT
|
BR, 3S, VT, CB, CE
|
1/3
|
3600
|
230/460
|
3
|
60
|
TEFC
|
26
|
13x7x6
|
|
LT25-12-B20 |
5
|
15
|
225
|
1500
|
1.1
|
1/2" FPT
|
1/4" FPT
|
BR, 3S, VT, CB, CE
|
1/8
|
1800
|
115/230
|
1
|
60
|
TEFC
|
23
|
13x7x6
|
|
+ Other seal configurations available for temperatures
up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting pumps for
fluids over 100 SSU.
** LT Series also available in all 316 SS.
See page 5 for material legend.
|
Contact
a Water Cooling Engineer for assistance in selecting pumps for fluids
with specific gravity over 1.1.
 Also available
in Explosion Proof.
|
|
