Type OH75
CENTRIFUGAL MOTOR PUMPS

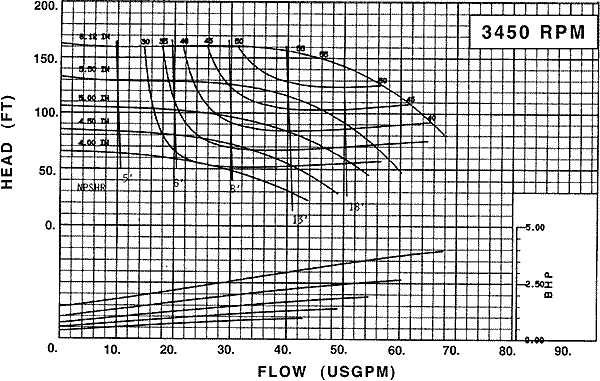

• Flows to 60 GPM • Heads to 160 Feet

MATERIALS
• Natural CPVC (OH75CP) • Natural PVDF (OH75PF)

OH75
• Discharge 3/4" male NPT • SUCTION 1" male NPT

APPLICATIONS
• Recirculating fume scrubbing filtering
• Sump pumping • Electronics
• D.I. water • Photo processing
• Water treatment • Acid Transfer
• Chillers • Metal etching

FEATURES
• All nonmetallic wetted parts
• True volute design for high efficiency and better performance
• Compact close coupled design
• Standard NEMA 56C motors, available DP, TEFC, X-P, Air Motor or Frame Mounted Continuous Duty
• All nonmetallic seals
• 1" T. 36 EPR carbon vs. ceramic seal standard. Viton, Buna and other seal faces optional.
• Internal recirculation flush option
• External flush option
• Optional Material available (contact factory)
