MC-HC/MD-CK series:
• Seal-Less Magnetic Drive Design - Eliminates leakage and
maintenance due to mechanical seals and packing
• Carbon Bearing (MD-HC Series Only)
– Allows for dry run
capabilities up to 8 hours
• Constructed of Corrosion-Resistant Materials
– Handles highly semi-corrosive fluids
• Motors are UL listed and Components are
NSF and CSA
Certified – ( MD-HC Series Only) – Assures high quality
• Magnetic Coupling - Provides overload
protection
|
|
|
|
|
Model
|
Max.
Flow
GPM
|
Max.
Head
FT
|
Max.
Temp
°F
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Wetted**
Materials
|
MOTOR DATA
|
Shp.
Wt.
Lbs
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
HP
|
RPM
|
Volts
|
PH
|
Hz
|
Encl
|
|
2-MD-HC
|
8.5
|
14.6
|
200
|
100
|
1.1
|
1/2" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/30
|
3100
|
115
|
1
|
60
|
OFC
|
4
|
5 x 4 x 9
|
|
2-MD-HC-230V
|
8.5
|
14.6
|
200
|
100
|
1.1
|
1/2" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/30
|
3100
|
230
|
1
|
60
|
OFC
|
4
|
5 x 4 x 9
|
|
3-MD-HC
|
12.5
|
21.9
|
200
|
100
|
1.1
|
3/4" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/12
|
3100
|
115
|
1
|
60
|
OFC
|
7.7
|
5 x 4 x 10
|
|
3-MD-HC-230V
|
12.5
|
21.9
|
200
|
100
|
1.1
|
3/4" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/12
|
3100
|
230
|
1
|
60
|
OFC
|
7.7
|
5 x 4 x 10
|
|
3-MD-MT-HC
|
8.3
|
16.2
|
200
|
100
|
1.1
|
1/2" MPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/25
|
3100
|
115
|
1
|
60
|
OFC
|
7.2
|
6 x 4 x 8
|
|
TE-3-MD-HC
|
9.8
|
16.3
|
200
|
100
|
1.1
|
1/2" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/25
|
3100
|
115
|
1
|
60
|
TEFC
|
7.7
|
5 x 4 x 10
|
|
TE-3-MD-HC-230V
|
9.8
|
16.3
|
200
|
100
|
1.1
|
1/2" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/25
|
3100
|
230
|
1
|
60
|
TEFC
|
7.7
|
5 x 4 x 10
|
|
4-MD-HC
|
14.2
|
24.3
|
200
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/10
|
3000
|
115
|
1
|
60
|
OFC
|
7.7
|
5 x 6 x 10
|
|
TE-4-MD-HC
|
14.2
|
24.3
|
200
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/10
|
3000
|
115
|
1
|
60
|
TEFC
|
7.7
|
5 x 6 x 11
|
|
TE-4-MD-HC-230V
|
14.2
|
24.3
|
200
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/10
|
3000
|
230
|
1
|
60
|
TEFC
|
7.7
|
5 x 6 x 11
|
|
5-MD-HC
|
17.5
|
27.5
|
200
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/8
|
3000
|
115
|
1
|
60
|
OFC
|
8.7
|
6 x 6 x 9
|
|
5-MD-HC-230V
|
17.5
|
27.5
|
200
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/8
|
3000
|
230
|
1
|
60
|
OFC
|
8.7
|
6 x 6 x 9
|
|
TE-5-MD-HC
|
26
|
29.3
|
200
|
100
|
1.1
|
1" FPT
|
1/2" MPT
|
RY, CE, CB, VT
|
1/8
|
3450
|
115/230
|
1
|
60
|
TEFC
|
17.2
|
6 x 8 x 12
|
|

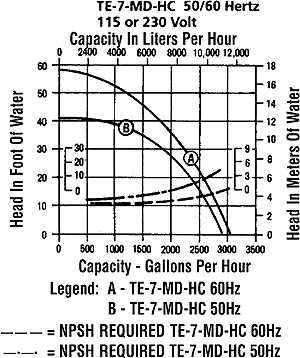

TE-7-MD-HC
|
53
|
58.9
|
200
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
RY, CE, CB, VT
|
3/4
|
3400
|
115/230
|
1
|
60
|
TEFC
|
50
|
8 x 9 x 18
|
|
TE-7-MD-HC-30
|
53
|
58.9
|
200
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
RY, CE, CB, VT
|
3/4
|
3400
|
230/460
|
3
|
60
|
TEFC
|
50
|
8 x 9 x 18
|
|
EP-7-MD-HC
|
53
|
58.9
|
200
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
RY, CE, CB, VT
|
3/4
|
3400
|
115/230
|
1
|
60
|
EXP
|
50
|
8 x 9 x 18
|
|
EP-7-MD-HC-30
|
53
|
58.9
|
200
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
RY, CE, CB, VT
|
3/4
|
3400
|
230/460
|
3
|
60
|
EXP
|
50
|
8 x 9 x 18
|
|
TE-7-MD-CK
|
53
|
58.9
|
200
|
100
|
1.1
|
1 1/2" FPT
|
1" MPT
|
KY, CH, VT, CE
|
3/4
|
3400
|
115/230
|
1
|
60
|
TEFC
|
50
|
8 x 9 x 18
|
| Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
