The following accessories are available
for use with the
JABSCO DRUM PUMPS.
|

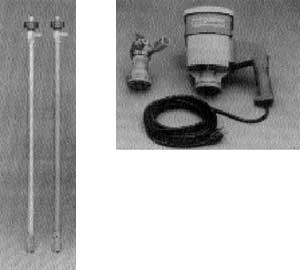

JABSCO Drum Pumps are designed to empty containers,
vats, drums
and carboys in general industrial and chemical applications. The heavy
duty construction and modular design allow for rough handling and low
maintenance costs. Polypropylene and 316 Stainless Steel construction
in three lengths are available for handling a wide range of chemicals
from strong acids and caustics to severe solvents to oils. Both electric
and air motors are available for use with any tube material or size.
• Seal-less Design - Provides 30 minute dry run capabilities
• Modular Design –Allows flexibility
in pump/motor selection
• Constructed of Corrosion Resistant Materials –
Allows handling of
a wide range of corrosive chemicals
• Heavy Duty Construction – Protects
pump from rough handling
|
PART
NO.
18753-0077
18753-0080
16490-1000
16490-1001
16470-0000
16471-0000
|
Description
Adjustable Flow Nozzle
PVC Barrel Adapter
Polypropylene Inlet Strainer
Stainless Steel Inlet Strainer
Wall Bracket
Grounding Wire |
|
|
|
Model
|
HP
|
RPM
|
Volts
|
PH
|
Hz.
|
Encl.
|
Shp.
Wt.
Lbs.
|
Overall
Dimensions
In.
|
|
1620-0115
|
1/4
|
10,600
|
115
|
1
|
60
|
TEFC
|
8
|
5 X 5 X 11
|
|
16420-0220
|
1/4
|
10,600
|
220
|
1
|
50
|
TEFC
|
8
|
5 X 5 X 11
|
|
16440-0000
|
1/3
|
8,000
|
AIR MOTOR
|
N/A
|
N/A
|
N/A
|
2
|
2 X 6 X 6
|
|
Model
|
Max.
Flow
|
Max.
Head
FT
|
Max.
Temp
P
|
Max.
Visc
SSU
|
Max.
Spec
Grav.
|
Connections
|
Tube
Length
In.
|
Wetted**
Materials
|
Shp.
Wt.
Lbs.
|
Overall
Dimensions
In.
|
|
Inlet
|
Outlet
|
|
16400-0270
|
25
|
70
|
130
|
3500
|
1.8
|
—
|
1" Hose
|
27
|
PP, TF, 20
|
3
|
3 x 3 x 32
|
|
16400-0350
|
25
|
70
|
130
|
3500
|
1.8
|
—
|
1" Hose
|
35
|
PP, TF, 20
|
3
|
3 x 3 x 40
|
|
16400-0470
|
25
|
70
|
130
|
3500
|
1.8
|
—
|
1" Hose
|
47
|
PP, TF, 20
|
4
|
3 x 3 x 52
|
|
16410-0270
|
25
|
70
|
200
|
3500
|
1.8
|
—
|
1" Hose
|
27
|
6S, TF
|
8
|
3 x 3 x 32
|
|
16410-0350
|
25
|
70
|
200
|
3500
|
1.8
|
—
|
1" Hose
|
35
|
6S, TF
|
8
|
3 x 3 x 40
|
|
16410-0470
|
25
|
70
|
200
|
3500
|
1.8
|
—
|
1" Hose
|
47
|
6S, TF
|
10
|
3 x 3 x 52
|
|
Other seal configurations available for
temperatures up to 350°F.
* Contact a Water Cooling Engineer for assistance in selecting
pumps for fluids over 500 SSU.
** Also available in All Bronze and 316SSS construction.
See page 5 for material legend.
|
Contact a Water Cooling Application Engineer for assistance
in selecting pumps for fluids with specific gravity over 1.1.
Also available in TEFC and Explosion Proof.
|
|
